Motorized Lamination Stacking Machine

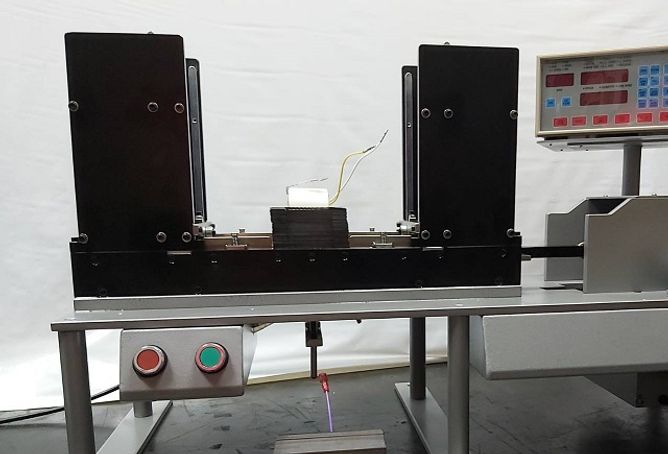

HT5C Motorized EI Lamination Stacking Machine

Automatic EI-35 Lamination Stacking Machine

Only 7 seconds stacking time.

Automatic EI transformer stacking machine

*01. High performance / Accuracy / Durable and easy maintenance
*02. Manpower Saving / Increasing your company benefits.
*03. Level up your enterprise level.
*04. Choose your own machine to work for you.

*05. High performance after years.

EI-57 Lamination Stacking Machine

Only 14 seconds stacking time.

EI-66 Lamination Stacking Machine

Only 15 seconds stacking time.

EI-76.2 Lamination Stacking Machine

Only 13 seconds stacking time.

EI-85.73 Lamination Stacking Machine

EI-105 Lamination Stacking Machine

EI-133.35 (USA EI-175H) Lamination Stacking Machine - Insulating Paper Coil

11.5 cm EI in height of Paper Coil stacking

Plastic Bobbin

Automatic EI-133 Lamination Stacking Machine

High performance, Easy operation, Easy maintenance. Low Noisy.
Level up your machine, Level up your Transformer production speed.

Controller box :

Automatic EI-114 Lamination Stacking Machine

The EI-133 Controller box: Setting procedure.

Automatic EI-105 Stacking Machine - Paperboard Coil

*01. EI machine promotional video and EI-105 stacking video.
*02. From 0:30 - The paperboard coil has required the finger to press the paperboard coil sometimes, as

this unit paperboard coil is not with 100% square hole sometimes after winding.
*03. The standard square hole quality coil does not need to use a finger to press the paperboard coil while

stacking.

Easy Operation & High-speed 9 seconds EI-54 stacking

*01. After 1 time setting at the memory, it is no need to re-set again next time stacking.
*02. 1 time click to start stacking operation automatically.

Automatic Machine Spec.

The EI lamination stacking machine sole manufacturer from Taiwan since 1972.

High-performance machines.

The best machine for the EI transformer.

1 click with easy operation.

HT5C lamination stacking machine with new 6 designs :

-1. Track Design.
-2. Slide Plate Design.
-3. Stopper Design.
-4. Transmission Device.
-5. High-quality steel material with a special coating.
-6. Imported Japan steel material/parts with special coating, with 3 times special hardness treatments.

Speed/Per mins. :
E-19 to E-25.4 = 350 pcs
EI-28 to EI-76.2 = 300 pcs.
EI-85.8 to EI-171 = 200 ~ 250 pcs.

Example: EI-66.7 Standard speed (Middle speed) around 272 pcs/Per min.
Available with a higher speed according to the bobbin coils and EI thickness...

Share this page

HT5C machine with new designs : (Japanese-made steel with Parts.)

-1. Track Design
-2. Slide Plate Design
-3. Stopper Design
-4. Transmission Device

-5. Special coating, with the 3 times

of Special hardness treatment.

-6. Durable / Easy Maintenace

-7. High performance after years.

* Less cost transformer production.
* Less loss of EI lamination material.
* Less labor cost.
* Less lead time of transformer order.
